Passenger Lift

• Capacity
• 8-16 Persons

• Car Dimension
• 1400 x 1500 mm

• Control Device
• Other, Microprocessor Control

• Door Opening Size
• 800 x 2100 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• 2000 x 2200 mm

• Inclination
• 0 (Vertical)

• Load Capacity
• 630-1250 kg

• Machine Room Size
• 2500 x 2200 mm

• Material
• other Sheet, Stainless Steel & Laminated Toughened Glass

• Max. Lifting Height
• Up to 80 meters

• Max. Lifting Weight
• 1250 kg

• Mechanism Type
• Other, Traction Drive

• Noise Level
• 60dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1500 mm

• Power Supply
• Three Phase Four Wire

• Safety Device
• Other, Overload Protection, Emergency Lowering, Door Lock Device, Safety Gear

• Speed
• 1.0-1.75 m/s

• Step Width
• N/A (Not applicable for elevators)

• Type
• Other, Passenger Elevator

• Usage
• Other, Commercial & Residential Buildings, Shopping Malls, Hotels

• Voltage
• 380V / 220V, 50Hz

• Working Temperature
• -10C to 40C

• Capacity
• 1000 kg (13 Persons)

• Car Dimension
• 1400 mm x 2400 mm

• Control Device
• Other, Microprocessor based control system

• Door Opening Size
• 1100 mm x 2100 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• 2100 mm x 2500 mm

• Load Capacity
• 1000 kg

• Machine Room Size
• 2100 mm x 3000 mm

• Material
• other Sheet, Stainless steel (cab and doors)

• Max. Lifting Height
• Up to 45 m

• Max. Lifting Weight
• 1000 kg

• Mechanism Type
• Other, Traction Type

• Noise Level
• 60 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1400 mm

• Power Supply
• 3 Phase, 50 Hz

• Safety Device
• Other, Overload protection, Emergency stop, Door safety edge, Intercom system

• Speed
• 1.0 m/s

• Type
• Other, Hospital Automatic Passenger Elevator

• Usage
• Other, Hospital, Patient Transportation

• Voltage
• 380V

• Working Temperature
• 5C to 40C

• Capacity
• 4-20 Persons

• Car Dimension
• Varies by capacity (e.g., 11001400 mm for 8 persons)

• Control Device
• Other, VVVF Microcomputer Control

• Door Opening Size
• 800 mm - 1100 mm

• Drive Type
• Other, Traction

• Hoist Way Size
• Customized according to car size

• Load Capacity
• 320 kg - 1600 kg

• Machine Room Size
• Standard / Machine Room-less (MRL) options

• Material
• other Sheet, Stainless Steel / Painted Steel

• Max. Lifting Height
• Up to 80 meters

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Gearless Traction / Geared Traction

• Noise Level
• 55 dB

• Overhead Height
• 4200 mm - 4900 mm

• Pit Depth
• 1400 mm - 1700 mm

• Power Supply
• AC 50Hz / 60Hz

• Safety Device
• Other, Overload Sensor, Emergency Stop, Door Lock

• Speed
• 1.0 - 2.5 m/s

• Type

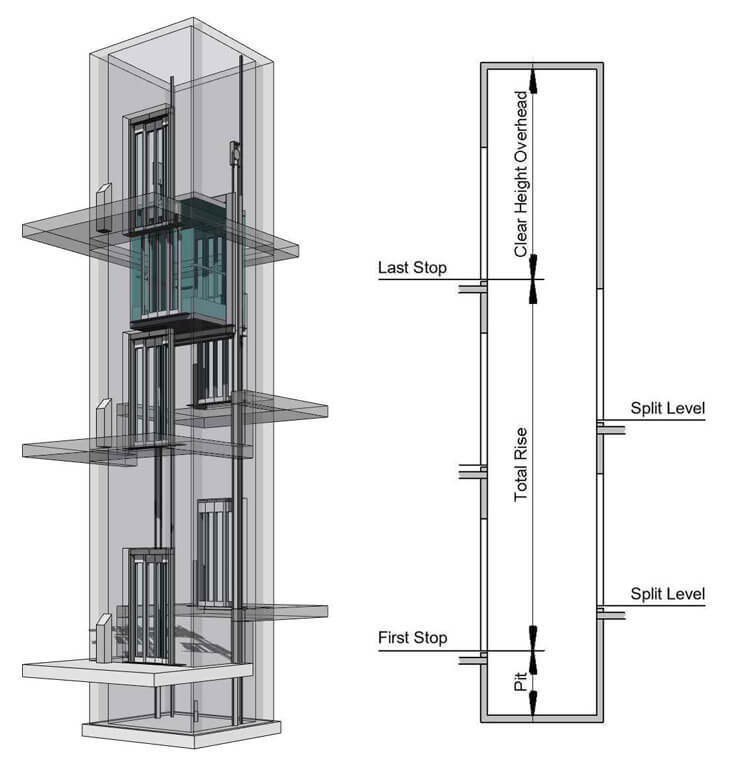

• Other, Automatic Two Side Open Passenger Elevator

• Usage
• Other, Residential, Commercial, Hotel, Hospital

• Voltage
• 380V / 220V

• Working Temperature
• -10C ~ +40C

• Capacity
• 2-5 Person

• Car Dimension
• 1000 mm (Diameter)

• Control Device
• Other, Push Button Control

• Door Opening Size
• 750 mm

• Drive Type
• Other, Vacuum Driven

• Hoist Way Size
• 1050 mm (Diameter)

• Inclination
• Vertical

• Load Capacity
• 250-400 kg

• Material
• other Sheet, Stainless Steel, Polycarbonate Glass

• Max. Lifting Height
• As Per Requirement

• Max. Lifting Weight
• 400 kg

• Mechanism Type
• Other, Vacuum Pneumatic

• Noise Level
• Low

• Overhead Height
• 2600 mm

• Pit Depth
• 80 mm

• Power Supply
• Electric

• Safety Device
• Other, Emergency Lowering, Alarm System, Interlock

• Speed
• 0.15 m/s

• Type
• Other, Vacuum Elevator

• Usage
• Other, Residential, Commercial

• Voltage
• 220-240 Volt (v)

• Working Temperature
• 5-45 C

• Capacity
• 2-6 Persons

• Car Dimension
• 900 mm x 1100 mm (customizable)

• Control Device
• Other, Microprocessor-based Control Panel

• Door Opening Size
• 700 mm (customizable)

• Drive Type
• Hydraulic

• Hoist Way Size
• 1400 mm x 1500 mm

• Inclination
• Vertical only

• Load Capacity
• 250 - 450 kg

• Machine Room Size
• Not Required (Machine-room less)

• Material
• other Sheet, Stainless Steel / Mild Steel with Paint Finish

• Max. Lifting Height
• Up to 15 meters

• Max. Lifting Weight
• 450 kg

• Mechanism Type
• Other, Hydraulic

• Noise Level
• Low, <60 dB

• Overhead Height
• 3000 mm

• Pit Depth
• 150 mm - 250 mm

• Power Supply
• Single/Three Phase AC

• Safety Device
• Other, Emergency lowering, Door interlock, Overload sensor

• Speed
• 0.3 - 0.6 m/s

• Type

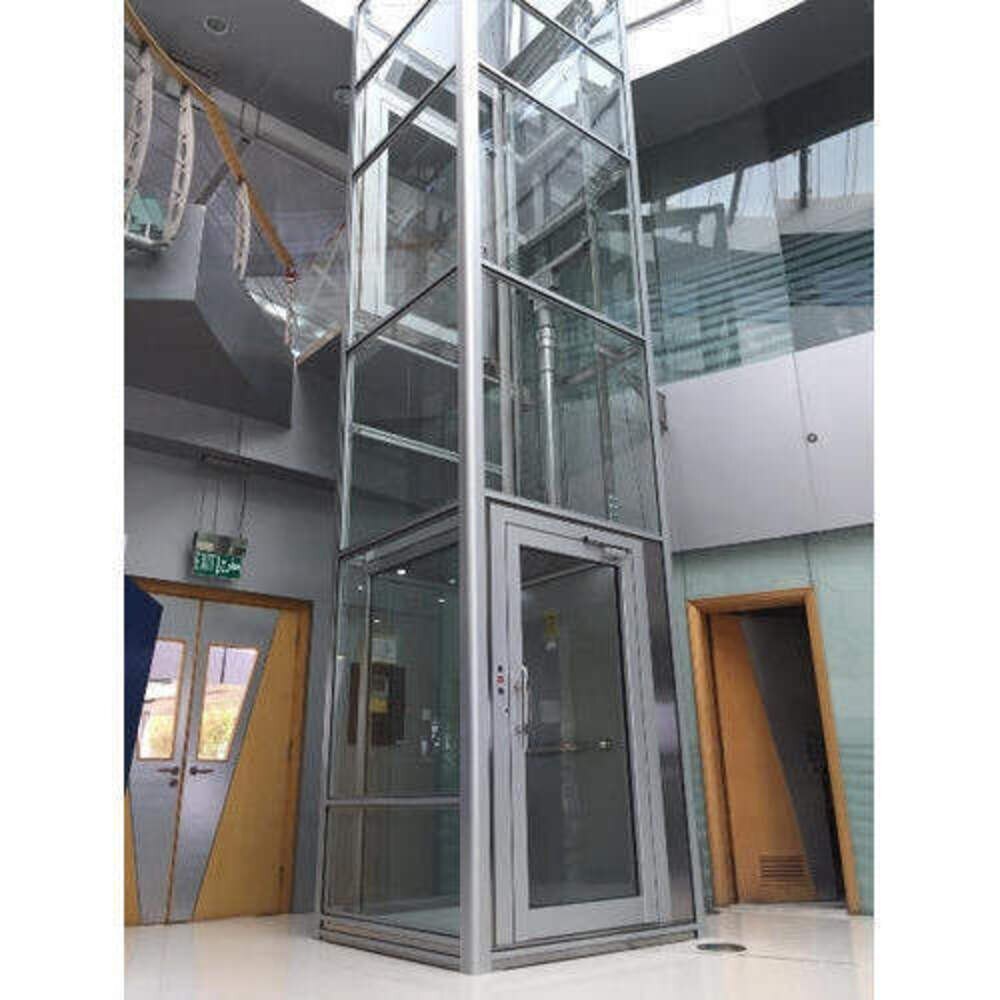

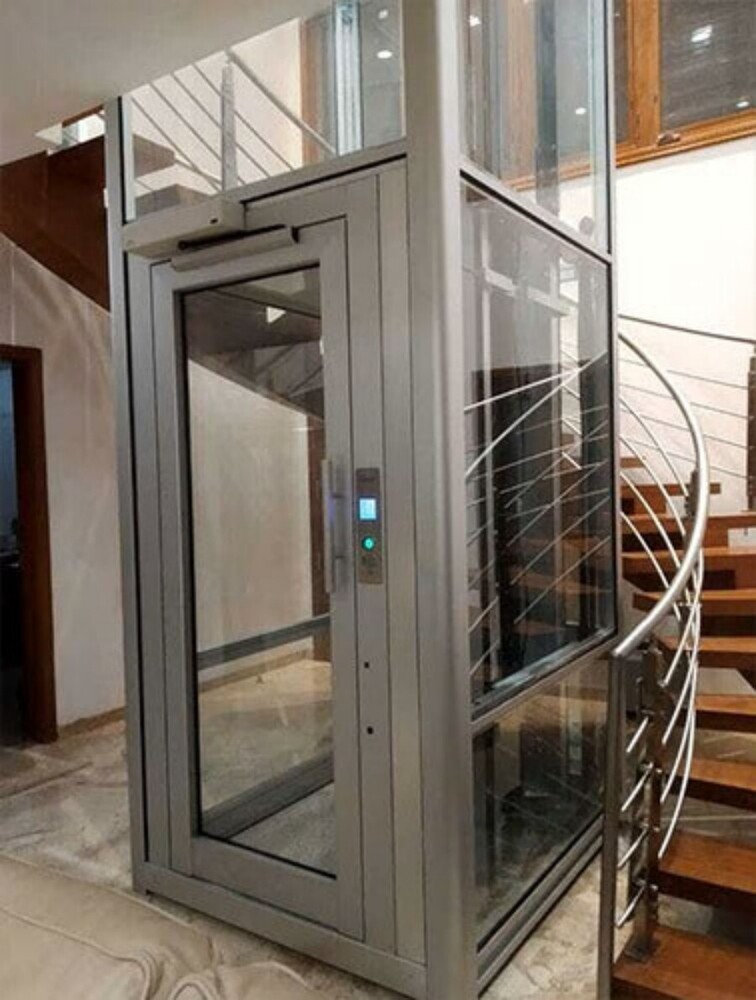

• Other, Residential Hydraulic Home Elevator

• Usage
• Other, Home / Residential Use

• Voltage
• 220-240 V

• Working Temperature
• -5C to +40C

• Capacity
• 4 - 20 Persons

• Car Dimension
• 1100 x 1400 mm (Customizable)

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 700mm / 800mm

• Drive Type
• Other, Electric Traction

• Hoist Way Size
• 1600 x 1800 mm

• Inclination
• Vertical

• Load Capacity
• 320 - 1360 kg

• Machine Room Size
• 2200 x 2000 mm

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• 1360 kg

• Mechanism Type
• Other, Geared or Gearless Traction

• Noise Level
• < 60 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1500 mm

• Power Supply
• 3 Phase, 50 Hz

• Safety Device
• Other, Overload Sensor, Emergency Alarm, Auto Rescue Device

• Speed
• 0.65 - 2.0 m/s

• Type

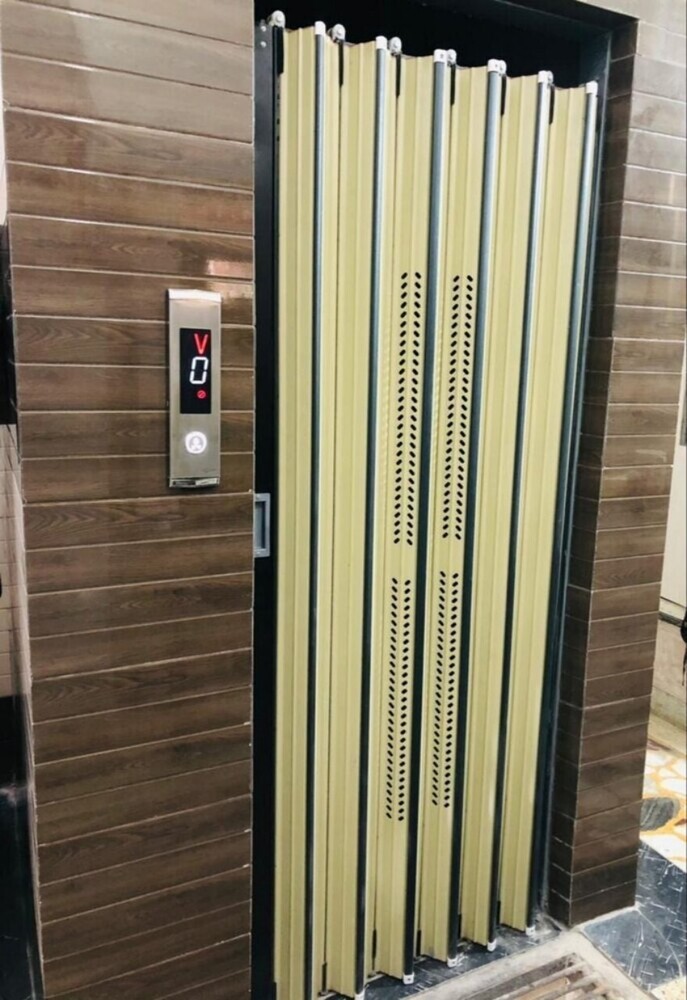

• Other, Imperforated Door Passenger Elevator

• Usage
• Other, Residential / Commercial Buildings

• Voltage
• 220-415V

• Working Temperature
• -10C to 45C

• Capacity
• 6-20 Persons

• Car Dimension
• Customized as per requirements

• Control Device
• Other, Microprocessor Based Control

• Door Opening Size
• 700 mm - 1100 mm

• Drive Type
• Other, Gearless / Geared Traction

• Hoist Way Size
• Customized

• Load Capacity
• 408 - 1360 kg

• Machine Room Size
• Machine Room / Machine Room Less (MRL) options

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Customized

• Max. Lifting Weight
• Up to 1360 kg

• Mechanism Type
• Other, Traction Elevator

• Noise Level
• 60 dB

• Overhead Height
• 4200 mm - 5200 mm

• Pit Depth
• 1200 mm - 1600 mm

• Power Supply
• Electric

• Safety Device
• Other, Overload Sensor, Emergency Alarm, Automatic Rescue Device

• Speed
• 1 - 2.5 m/s

• Type
• Other, Passenger Lift

• Usage
• Other, Residential, Commercial, Public Buildings

• Voltage
• 220-380 V

• Working Temperature
• -10C to +40C

• Capacity
• 4 - 8 Persons

• Car Dimension
• 1100 mm x 1400 mm (customizable)

• Control Device
• Other, Microcomputer Control / PLC

• Door Opening Size
• 800 mm

• Drive Type
• Hydraulic

• Hoist Way Size
• 1550 mm x 1550 mm

• Inclination
• Vertical

• Load Capacity
• 320 - 630 Kg

• Machine Room Size
• Min. 2000 mm x 1600 mm

• Material
• other Sheet, Stainless Steel & Laminated Glass

• Max. Lifting Height
• 12 m

• Max. Lifting Weight
• 800 Kg

• Mechanism Type
• Other, Hydraulic

• Noise Level
• 55 dB

• Overhead Height
• 3400 mm

• Pit Depth
• 300 mm - 500 mm

• Power Supply
• AC 50Hz/60Hz

• Safety Device
• Other, Emergency Stop, Overload Protection, Interlock, Alarm, Automatic Rescue Device

• Speed
• 0.3 - 0.6 m/s

• Type
• Other, Passenger Elevator

• Usage
• Other, Residential

• Voltage
• 220V / 380V

• Working Temperature
• -10C to +55C

• Capacity
• 6 to 20 persons

• Car Dimension
• 1100x1400 mm to 1600x2000 mm

• Control Device
• Other, Microprocessor-based Control System

• Door Opening Size
• 800mm to 1100mm

• Drive Type
• Other, Geared/ Gearless

• Hoist Way Size
• 1600x1700 mm to 2400x2600 mm

• Inclination
• 0 (Vertical)

• Load Capacity
• 450-1360 kg

• Machine Room Size
• 2200x3000 mm (Standard)

• Material
• other Sheet, Stainless Steel (Grade 304/316)

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• 1360 kg

• Mechanism Type
• Other, Traction/Lift

• Noise Level
• <55 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1400 mm

• Power Supply
• Three Phase AC

• Safety Device
• Other, Overload sensor, Emergency alarm, Door lock device

• Speed
• 0.65 - 1.5 m/s

• Type
• Other, Passenger Elevator

• Usage
• Other, Commercial/Residential Buildings

• Voltage
• 220V/380V

• Working Temperature
• -5C to 40C

• Capacity
• 6 to 20 persons

• Car Dimension
• As per Standard/Customized

• Control Device
• Other, Microprocessor Based Control

• Door Opening Size
• 700 mm to 1100 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• As per Standard/Customized

• Inclination
• 0 (Vertical)

• Load Capacity
• 450 kg to 1350 kg

• Machine Room Size
• As per Requirement

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Up to 100 m

• Max. Lifting Weight
• Up to 1350 kg

• Mechanism Type
• Other, Traction / Hydraulic

• Noise Level
• 60 dB

• Overhead Height
• 4200 mm - 4800 mm

• Pit Depth
• 1500 mm - 1800 mm

• Power Supply
• 3 Phase, 50/60 Hz

• Safety Device
• Other, Overload Sensor, Emergency Stop, Door Interlock

• Speed
• 1.0 m/s to 2.5 m/s

• Type
• Other, Passenger Lift

• Usage
• Other, Residential, Commercial, Institutional Buildings

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 50C

• Capacity
• 6 to 20 Persons

• Car Dimension
• Approx. 1400mm x 1100mm x 2200mm (customizable)

• Control Device
• Other, Microcomputer control

• Door Opening Size
• 900mm ~ 1100mm

• Drive Type
• Other, VVVF Drive (Variable Voltage Variable Frequency)

• Hoist Way Size
• Varies as per design

• Inclination
• 0 (vertical)

• Load Capacity
• 450 kg to 1600 kg

• Machine Room Size
• Machine Room or MRL (Machine Room Less) options

• Material
• other Sheet, Stainless Steel / Hairline Finish

• Max. Lifting Height
• Up to 80 meters

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Traction Elevator

• Noise Level
• < 55 dB

• Overhead Height
• 4200mm minimum

• Pit Depth
• 1400mm minimum

• Power Supply
• Three Phase, 50/60 Hz

• Safety Device
• Other, Over-speed Governor, Emergency Stop, Door Interlock, Buffer

• Speed
• 1.0 m/s to 2.5 m/s

• Type
• Other, Passenger Elevator

• Usage
• Other, Hotel Passenger Use

• Voltage
• 380V / 415V

• Working Temperature
• -5C to +40C

• Capacity
• 4-20 Persons

• Car Dimension
• Customizable as per requirement

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 700 mm - 1100 mm

• Drive Type
• Other, Geared or Gearless

• Hoist Way Size
• 1450 mm x 1500 mm (min)

• Load Capacity
• 320 kg to 1600 kg

• Machine Room Size
• 2200 mm x 2300 mm (min)

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Up to 60 m

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Electric Traction

• Noise Level
• < 60 dB

• Overhead Height
• 4200 mm (min)

• Pit Depth
• 1500 mm (min)

• Power Supply
• Three Phase, 50/60 Hz

• Safety Device
• Other, Overload Protection, Emergency Alarm, Auto Rescue Device

• Speed
• 0.5 - 1.75 m/s

• Type
• Other, Swing Door Passenger Elevator

• Usage
• Other, Residential, Commercial Buildings

• Voltage
• 220-380 V AC

• Working Temperature
• -10C to 50C

• Capacity
• 6-20 Persons

• Car Dimension
• 1100 mm x 1400 mm (standard for 8 persons)

• Control Device
• Other, Microprocessor Control

• Door Opening Size
• 800 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency)

• Hoist Way Size
• 1850 mm x 1600 mm

• Inclination
• 0 (Vertical)

• Load Capacity
• 450 kg - 1360 kg

• Machine Room Size
• 2200 mm x 2000 mm

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Up to 80 meters

• Max. Lifting Weight
• 1360 kg

• Mechanism Type
• Other, Traction / Hydraulic

• Noise Level
• 50 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1500 mm

• Power Supply
• Three Phase AC

• Safety Device
• Other, Overload protection, Emergency alarm, Safety gear

• Speed
• 1.0 - 1.75 m/s

• Type
• Other, Automatic Door Passenger Elevator

• Usage
• Other, Residential, Commercial, Hotel, Hospital

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 45C

• Capacity
• 6-26 Persons

• Car Dimension
• Standard 1400 x 1600 mm and custom sizes

• Control Device
• Other, Microcomputer control (VVVF)

• Door Opening Size
• 800 - 1200 mm

• Drive Type
• Other, Geared / Gearless Traction

• Hoist Way Size
• Shaft size as per capacity

• Inclination
• 0 (vertical lift)

• Load Capacity
• 450 - 2000 Kg

• Machine Room Size
• Compact or machine room-less optional

• Material
• other Sheet, Stainless steel cabin with decorative panels

• Max. Lifting Height
• Up to 100 meters

• Max. Lifting Weight
• 2000 Kg

• Mechanism Type
• Other, Advanced VVVF drive

• Noise Level
• < 60 dB

• Overhead Height
• 4200 mm (standard)

• Pit Depth
• 1500 mm (standard)

• Power Supply
• AC 50/60Hz

• Safety Device
• Other, Overload sensor, Emergency stop, Automatic rescue device, Interlock system

• Speed
• 1.0 - 2.5 m/s

• Step Width
• Not applicable for elevator

• Type
• Other, Automatic Passenger Elevator

• Usage
• Other, Luxury Passengers, Hotels, Corporate, Residential

• Voltage
• 220-440V

• Working Temperature
• -5C to +40C

• Capacity
• 6-20 Persons

• Car Dimension
• Customized as per shaft

• Control Device
• Other, Microcomputer/PLC Control

• Door Opening Size
• 700-1100 mm

• Drive Type
• Other, Traction/Geared or Gearless

• Hoist Way Size
• Varies per capacity, typically from 1600x1600 mm upwards

• Inclination
• 0 (Vertical)

• Load Capacity
• 450-1600 kg

• Machine Room Size
• Standard / Compact as per type

• Material
• other Sheet, Stainless Steel / Powder Coated Steel

• Max. Lifting Height
• Up to 80 m

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Electric Traction

• Noise Level
• <50 dB

• Overhead Height
• Min. 4200 mm

• Pit Depth
• Min. 1400 mm

• Power Supply
• Three Phase AC

• Safety Device
• Other, Overload Protection, Emergency Alarm, Interlocks

• Speed
• 1.0-2.5 m/s

• Type
• Other, MR (Machine Room) / MRL (Machine Room Less)

• Usage
• Other, Commercial / Corporate Buildings

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 50C

• Capacity
• 1-13 Persons

• Car Dimension
• Customizable (Standard: 1100 x 1400 mm)

• Control Device
• Other, Microcomputer Control

• Door Opening Size
• 700-900 mm

• Drive Type
• Other, Traction / Hydraulic

• Hoist Way Size
• Minimum 1600 x 1700 mm

• Inclination
• 0 degree

• Load Capacity
• 320-1000 kg

• Machine Room Size
• Standard/Optional Machine Roomless

• Material
• other Sheet, Stainless Steel/Glass/Cabon Steel

• Max. Lifting Height
• Up to 24 m

• Max. Lifting Weight
• 1000 kg

• Mechanism Type
• Other, Automatic

• Noise Level
• 52-55 dB(A)

• Overhead Height
• 3600 mm minimum

• Pit Depth
• 1500 mm minimum

• Power Supply
• AC

• Safety Device
• Other, Overload Protection, Emergency Alarm, Safety Sensor

• Speed
• 0.65~1.0 m/s

• Type
• Other, Residential Passenger Elevator

• Usage
• Other, Residential Building

• Voltage
• 220-440 V

• Working Temperature
• -10C to +50C

• Capacity
• 6 - 20 Persons

• Car Dimension
• 1100x1400 mm to 2000x1800 mm

• Control Device
• Other, Microcomputer Controlled

• Door Opening Size
• 800 mm to 1100 mm

• Drive Type
• Other, Traction / Hydraulic

• Hoist Way Size
• 1600x1800 mm to 2600x2700 mm

• Load Capacity
• 450 kg to 1350 kg

• Machine Room Size
• 2000x3000 mm

• Material
• other Sheet, Stainless Steel / Steel

• Max. Lifting Height
• 50 m

• Max. Lifting Weight
• 1350 kg

• Mechanism Type
• Other, Electric

• Noise Level
• 55 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1600 mm

• Power Supply
• 50Hz / 60Hz

• Safety Device
• Other, Automatic Rescue Device, Overload Sensor, Emergency Alarm

• Speed
• 1.0 - 2.5 m/s

• Type
• Other, Passenger Elevator

• Usage
• Other, Commercial / Residential Buildings

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 40C
